HSS Drill Bits - a range of top quality drill bits for metal and plastics - requiring 20% less drilling force than comparable products - Trade Angel

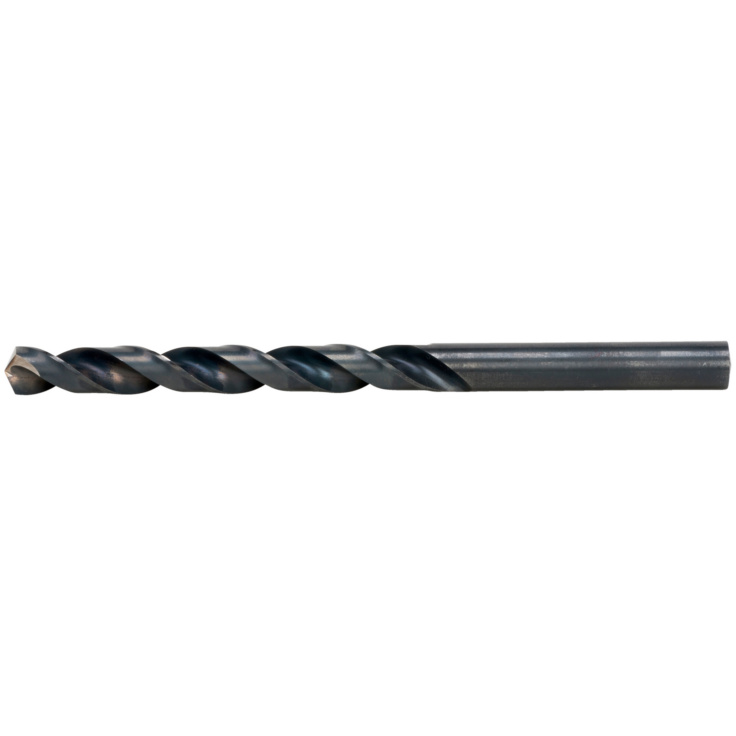

HSS Drill Bits

SKU: 624000500
Regular price
£29.04
Sale price
£15.98
You save: £13.06 ( 45% )
Incl VAT
  • Rapid delivery in London
  • Overnight delivery UK Mon-Fri
  • No quibble 30 day returns
  • Price match promise*

Available Stock: 1

click and collection pickup

FREE Click & Collect available

8-7 weekdays 10-5 weekends
5 Morie Street SW18 1SL

HSS Drill Bits

A range of top quality drill bits for metal and plastics - requiring 20% less drilling force than comparable products


Suitable for machine type

Drill
Cordless screwdrivers
Pedestal drilling machine

Material to be processed

Steel
Cast iron

Quality

ZEBRA-Premium

Standard / drilling depth

DIN 338 / 5xD

Diameter

range

Shank style

Cylindrical

Material sub-group

General structural steels
Non-alloyed tempering steels
Cast iron
Ductile iron
Malleable cast iron
Magnesium alloys
Copper, low-alloyed
Brass, short-chipping
Brass, long-chipping
Plastics, duroplastic
Plastics, thermoplastic

Surface

Vaporised

Cutting material

HSS

Angle of the tip

130 Degree

Suitable for drill (points system)

3 of 4 points

Length - varies

various

Suitable for cordless drills (points system)

3 of 4 points

Suitable for upright drilling machine (points system)

3 of 4 points

Suitable for milling-drilling centre (points system)

1 of 4 points

Service life (points system)

3 of 4 points

Drilling speed (point system)

3 of 4 points

Bore hole quality (point system) ( )

4 of 4 points

Versatility (points system)

2 of 4 points

Drilling behaviour (point system)

3 of 4 points

Chip flute length

24 mm

Self-centring

Yes

Max. drilling depth (D)

5xD

Steel precision drill for general, broad applications in steel up to 850 N/mm strength and cast iron.

20% less infeed force compared to conventional drills, with faster work progress and less expenditure of effort

Optimised cross thinning



Highly accurate tapping without centring, even on curved surfaces

Optimum cross-grinding

Ideal for producing core drill holes

Highly precise tip grinding for precise drilling

Excellent adhesion of cooling lubricants and a reduced tendency towards build-up

Vaporised surface
