Collection: Valsir - Triplus Acoustic Pipe & Fittings

A range of push fit pipe and fittings that reduce sound levels from water flows and noise transmission through the pipes.

This makes them idea to use in situations where sound insulation is harder to fit.

The pipes may still need additional noise insulation to comply in some situation particularly where they are flanking sound barrier in flats or other compartmentation.

We do also offer the fire rated versions of these pipe separately.

Product Brochure



logo-triplus

The evolution of push-fit soundproof waste systems.

panoramica-tubi

The Triplus® pipes are in fact made up of three layers of material, which, when joined, result in a system with extremely good mechanical characteristics, even at low temperatures, and an excellent soundproofing performance.

Triplus® is a push-fit system that includes triple layer pipes, fittings and accessories, industrialized, produced and patented by Valsir, that guarantees the levels of low noise emissions of waste systems required by the regulations, laws and standards in force.


Characteristics of excellence

The intermediate layer is created with a patented polypropylene-based (PP) mix with mineral fillers (MF) such as to provide the Triplus® system with excellent mechanical characteristics at low (impact resistance at temperatures as low as -25°C) and high temperatures (continuous discharge with temperatures as high as 95°C).

The Triplus® waste system can transport waste waters with PH values between 2 and 12, it has a high resistance to the most common chemical compounds and is characterised by an extremely smooth internal surface that prevents the build-up of internal deposits inside the waste network.

sezioni-tubo

Speed and extreme ease of installation

The socket connection, does not require the use of glues or harmful solvents.

Excellent soundproofing performance

Measured in the Fraunhofer laboratories in Stuttgart, in compliance with European Standard EN 14366 equal to 12 dB(A) with a flow rate of 2 l/s (certificate P-BA 227/2006).

High chemical resistance

To substances dissolved in civil and industrial waste waters.

Extremely harsh temperatures

High impact resistance at extremely harsh temperatures (as low as -25°C).

Mechanical resistance.

The pipes are made up of three layers of material joined together to guarantee elevated mechanical resistance.

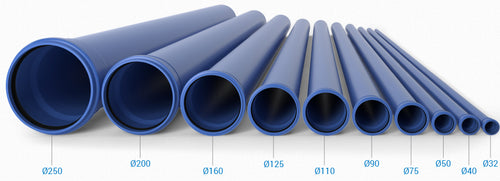

From DN 32 mm to DN 250 mm

Wide range of diameters from DN 32 mm to DN 250 mm.

Valsir Green Building

Sustainability

The product, its recyclability and the production processes are based on Green Building principles.


panoramica-gamma

An extremely wide range

The range is composed of pipe lengths between 150 mm and 3 m and is characterised by a wide choice of fittings and accessories that allows the construction of the most varied system configurations.

The smaller diameters such as 32, 40 and 50 mm are used for the branch pipe connections on each floor, while the larger diameters such as 250 mm are used for the waste manifolds.

panoramica-prestazioni-acustiche

Significant acoustic performance

When a waste system is in use, noises are generated inside the pipelines causing it to vibrate from the fall of the liquid being discharged.

Most of the noise generated spreads inside the pipe but the vibrations that are generated are transmitted from the walls of the pipe to the surrounding area and to the bracketing systems and consequently to the building structure.


Valsir Multibranch

panoramica-gamma

panoramica-gamma

panoramica-gamma

Valsir has developed a new product capable of significantly improving waste systems:

  • Maximum freedom to install the required diameters without the use of reducers (Ø 32, Ø 40, Ø 50, Ø 56).
  • Each fixture is connected to the waste stack with its own connection guaranteeing improved flow rates even when fixtures are used contemporarily.
  • Simplification and unification of fittings.
  • Made of Triplus material with exceptional acoustic performance in compliance with waste system standards.
  • Less risk of blockages.
  • Easier maintenance.

T-TRAP: new trends from the world

panoramica-t-trap

panoramica-t-trap

Thanks to its experience gained worldwide, Valsir has developed T-TRAP: a trapped gully that allows the installation of waste systems in the suspended ceiling of the room below. This product provides greater accessibility to the waste system and faster modifications in the event of renovations.

T-TRAP has the best product characteristics on the market:

  • 75 mm of hydraulic seal.
  • Flow of 0.67 l/s.
  • Made with Triplus material guaranteeing exceptional acoustic performance.

panoramica-soluzioni

Solutions for all requirements

Valsir is the only company that can supply a triple layer waste system with a Triplus® “ventilation branch”. This is the ideal solution in high-rise buildings with a high simultaneous use factor of the sanitary appliances.

Push-fit joints, installation ease and rapidity

Triplus® ensures practical and rapid installations without the use of glues, electrical appliances or special tools, thanks to the push-fit jointing system.

45 products

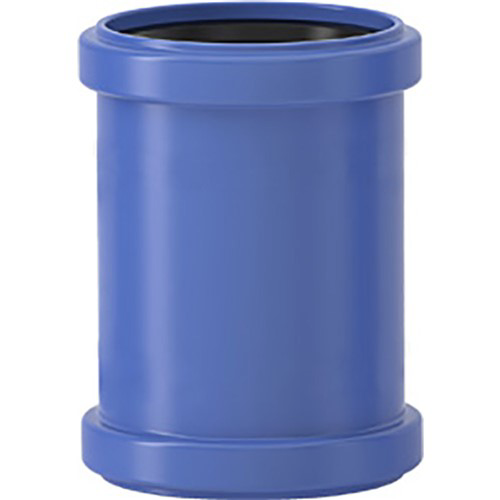

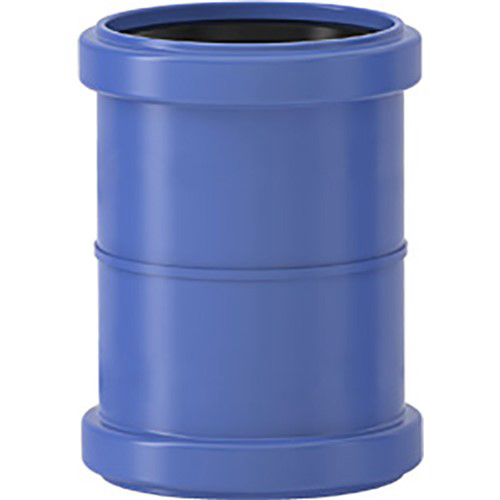

  • VALSIR TRIPLUS DOUBLE SOCKET COUPLING
    Vendor
    Valsir
    Regular price
    £2.86
    Sale price
    £2.25

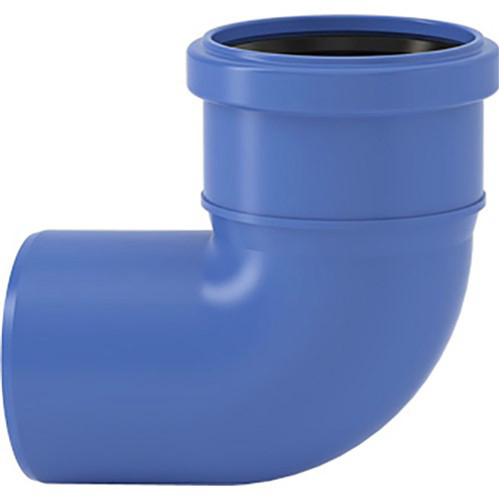

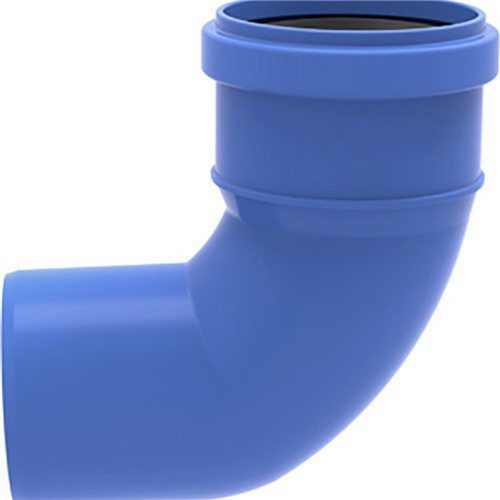

  • VALSIR TRIPLUS BEND 87.30 DEGREE
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £1.72
  • VALSIR TRIPLUS SINGLE SOCKET PIPE x L1500mm
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £6.58
  • VALSIR TRIPLUS DOUBLE SOCKET PIPE x L1500mm
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £7.91
  • VALSIR TRIPLUS DOUBLE SOCKET PIPE x L500mm
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £3.90
  • VALSIR TRIPLUS SINGLE SOCKET PIPE x L500mm
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £2.75
  • VALSIR TRIPLUS SINGLE SOCKET PIPE x L250mm
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £1.98
  • VALSIR TRIPLUS SINGLE SOCKET PIPE x L150mm
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £1.53

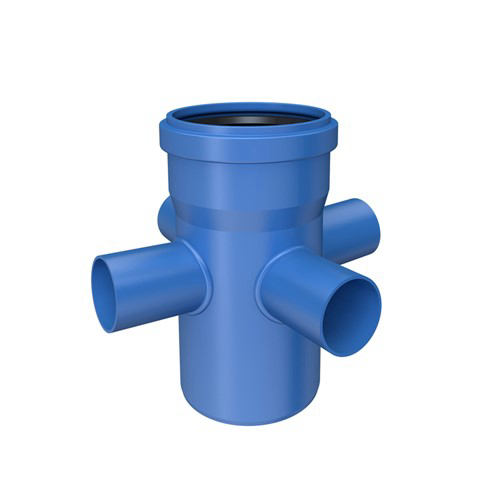

  • VALSIR TRIPLUS 4 Way Boss
    Vendor
    Valsir
    Regular price
    £59.09
    Sale price
    £46.42

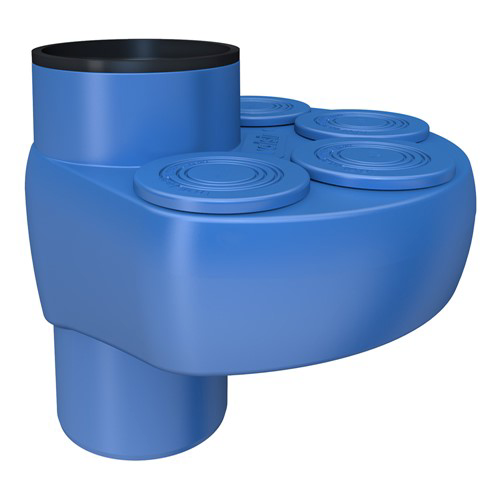

  • VALSIR TRIPLUS MULTIBRANCH
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £70.61
  • VALSIR TRIPLUS ECCENTRIC REDUCER LONG
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £3.48

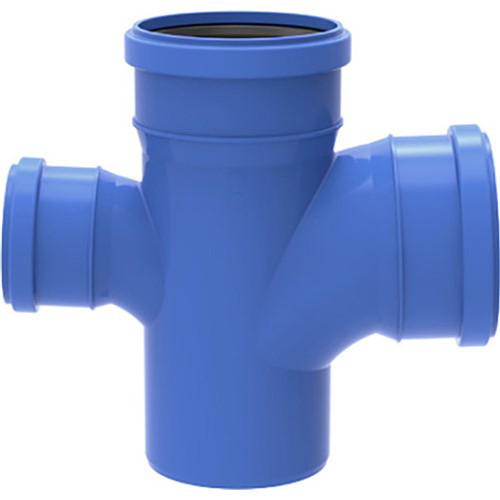

  • VALSIR TRIPLUS REDUCING SWEPT BRANCH 87.30 Degree
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £10.97
  • VALSIR TRIPLUS SWEPT BRANCH 87.30 Degree
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £10.97

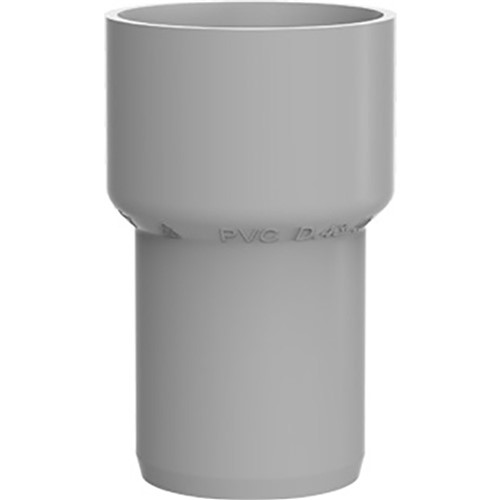

  • Valsir TRIPLUS PVC Adaptor
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £7.54
  • VALSIR TRIPLUS SWEPT DOUBLE BRANCH 87.3 Degree
    Vendor
    Valsir
    Regular price
    £44.76
    Sale price
    £35.17

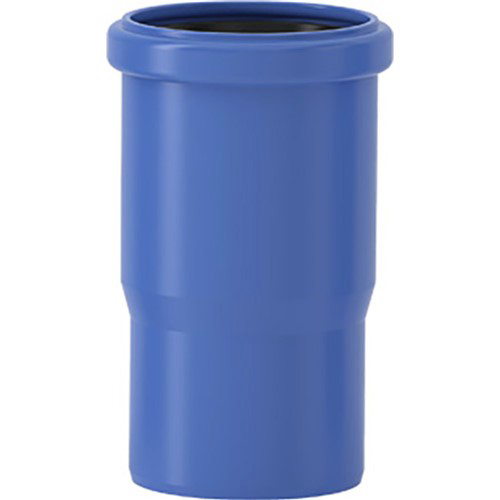

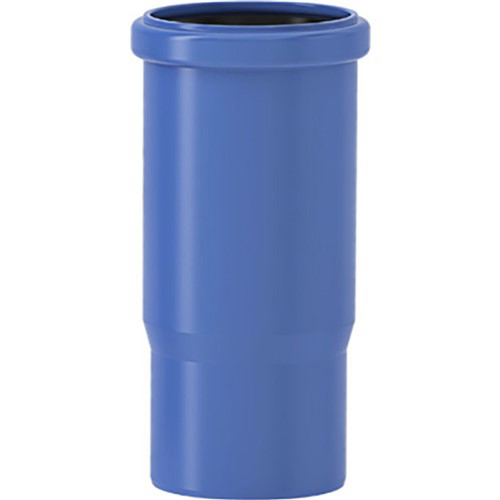

  • VALSIR TRIPLUS INCREASER SLEEVE
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £2.79
  • VALSIR TRIPLUS LONG RADIUS BEND 87.30 Degree
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £1.84
  • VALSIR TRIPLUS STRAIGHT FITTING W/CAP
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £4.54

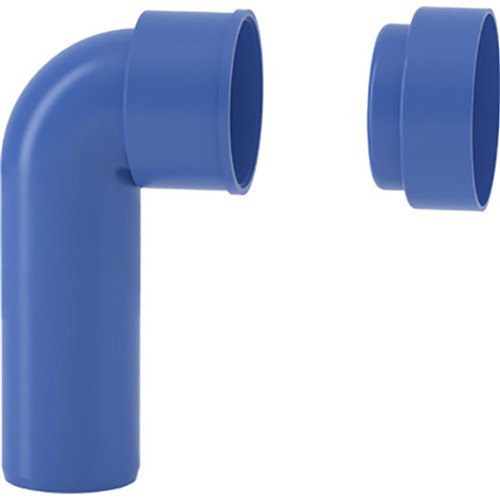

  • VALSIR TRIPLUS SPIGOT BEND W/CAP
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £4.54

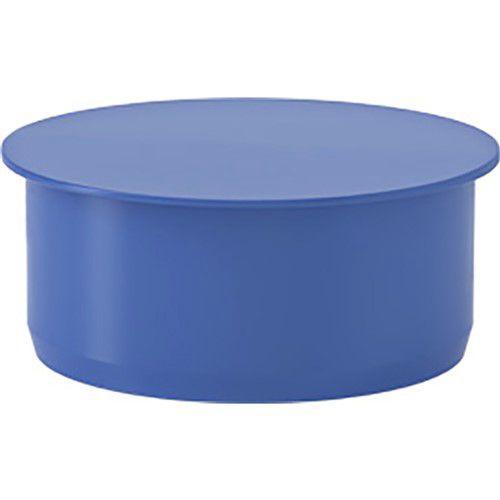

  • VALSIR TRIPLUS CLOSING CAP
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £1.72

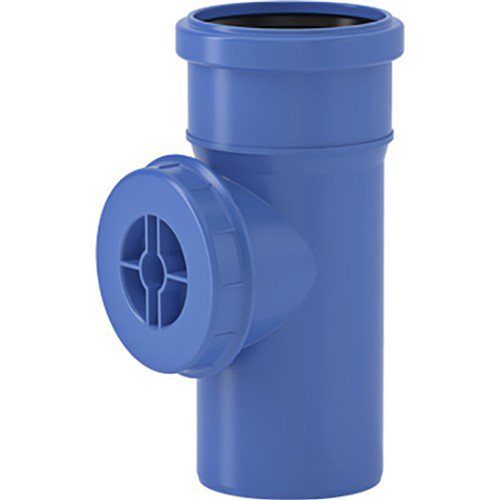

  • VALSIR TRIPLUS ACCESS PIPE WITH COVER
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £8.08

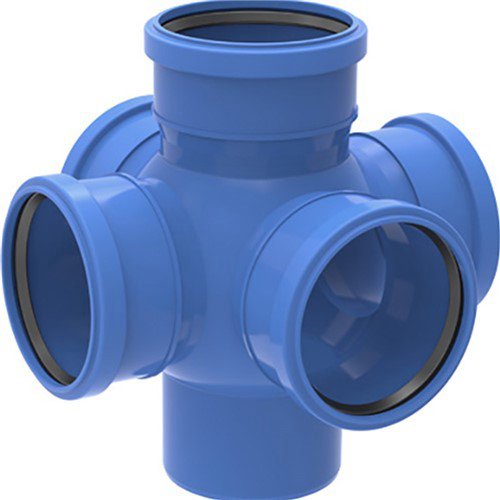

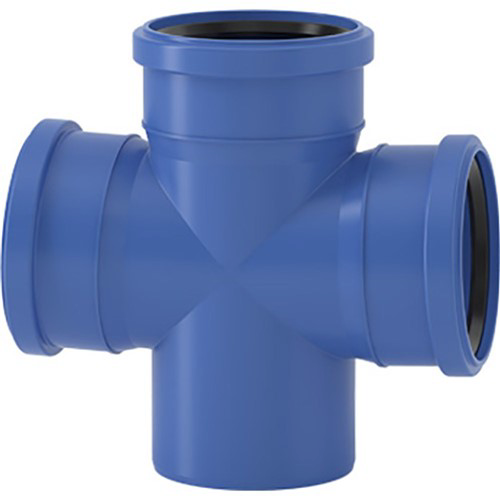

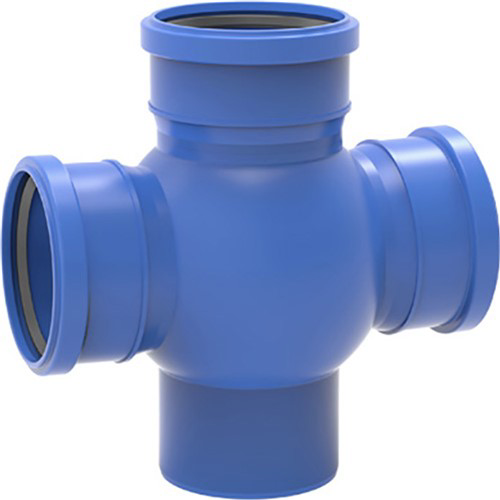

  • VALSIR TRIPLUS 4-WAY BALL BRANCH 90 Degree
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £127.03
  • VALSIR TRIPLUS 2-WAY BALL BRANCH 180 Degree
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £86.33

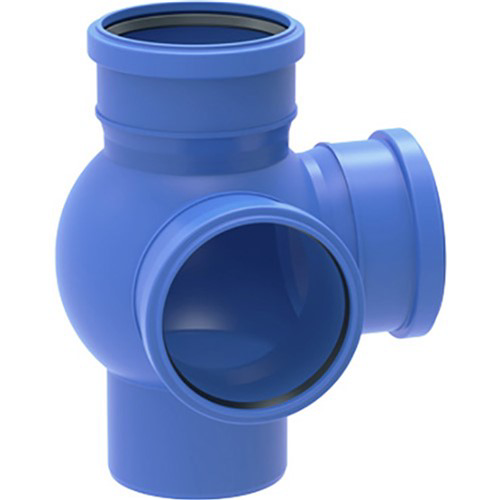

  • VALSIR TRIPLUS 2-WAY BALL BRANCH 90 Degree
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £86.33

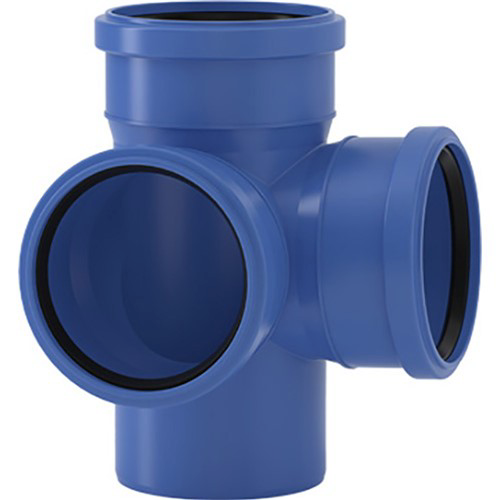

  • VALSIR TRIPLUS CORNER BRANCH 87.30 Degree
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £44.11

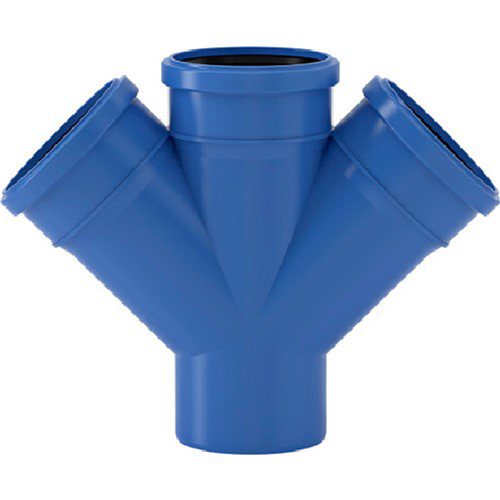

  • VALSIR TRIPLUS DOUBLE BRANCH 45 Degree
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £21.08
  • VALSIR TRIPLUS DOUBLE BRANCH 87.30 Degree
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £42.12
  • VALSIR TRIPLUS DOUBLE DEPTH SOCKET
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £5.27
  • VALSIR TRIPLUS TRIPLE DEPTH SOCKET
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £5.27

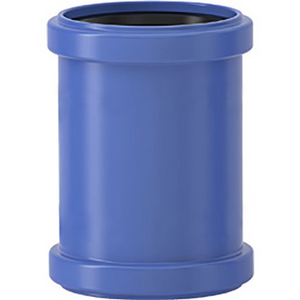

  • VALSIR TRIPLUS SLIP COUPLING
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £2.25

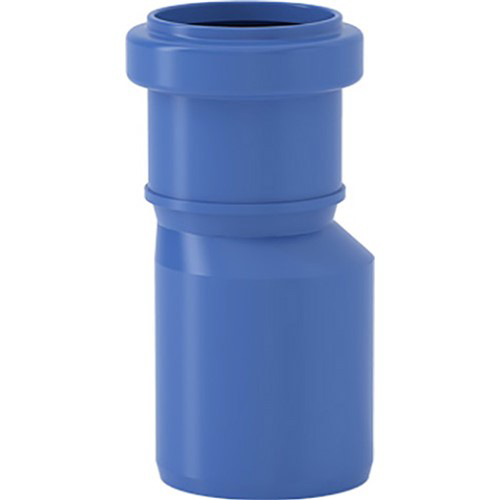

  • VALSIR TRIPLUS ECCENTRIC REDUCER
    Vendor
    Valsir
    Regular price
    Sold out
    Sale price
    £2.70

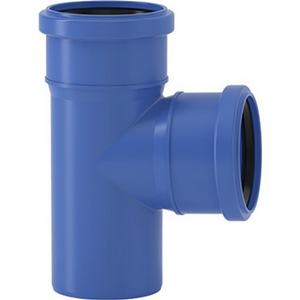

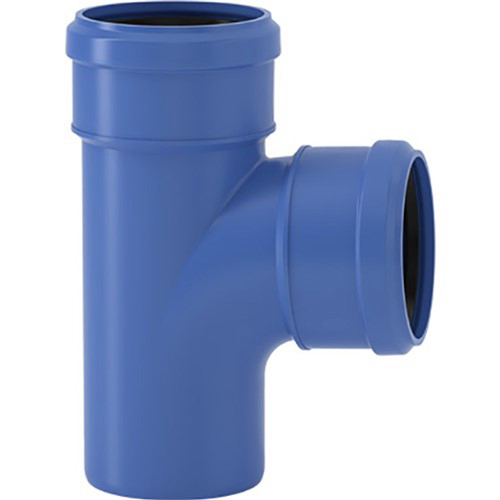

  • VALSIR TRIPLUS REDUCING BRANCH 87.30 Degree
    Vendor
    Valsir
    Regular price
    £4.82
    Sale price
    £3.79
