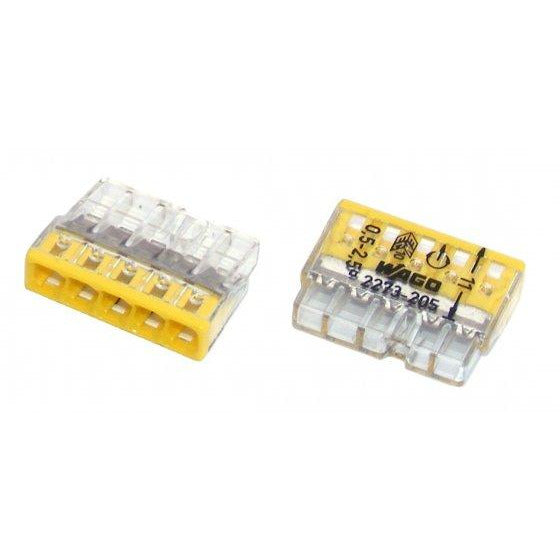

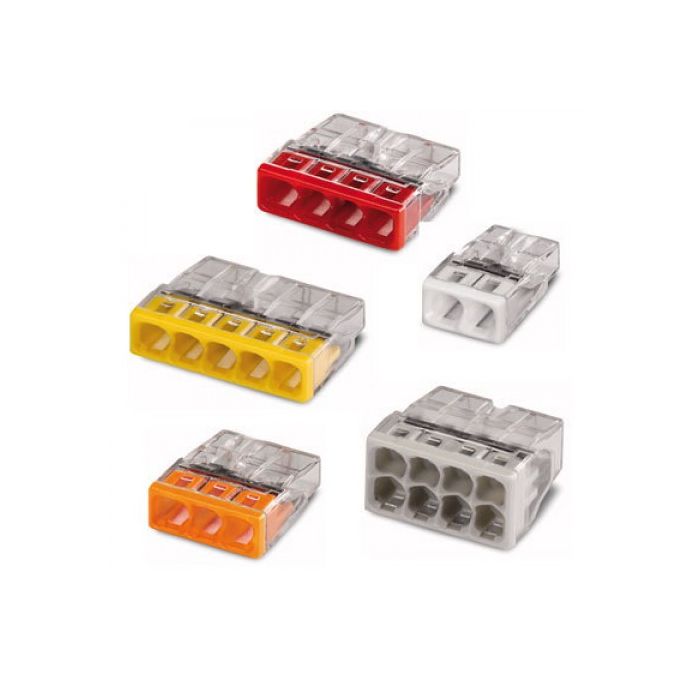

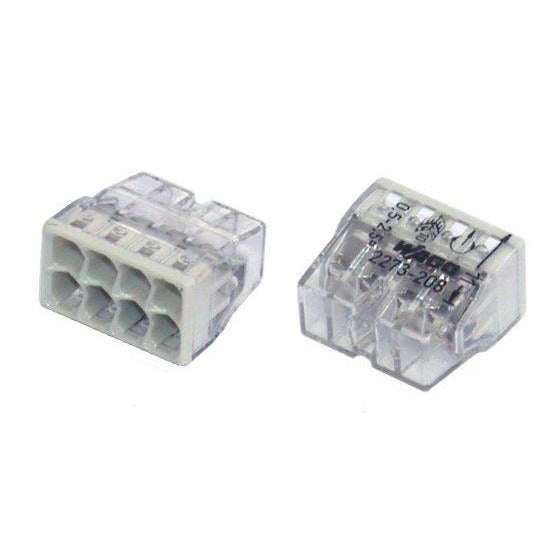

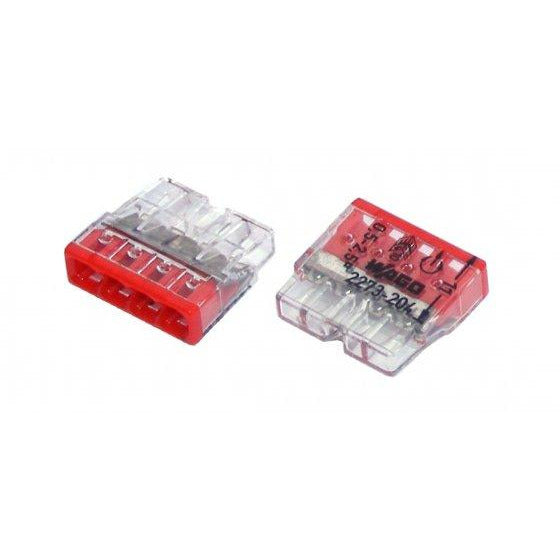

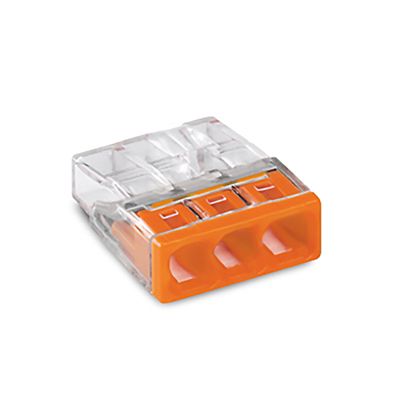

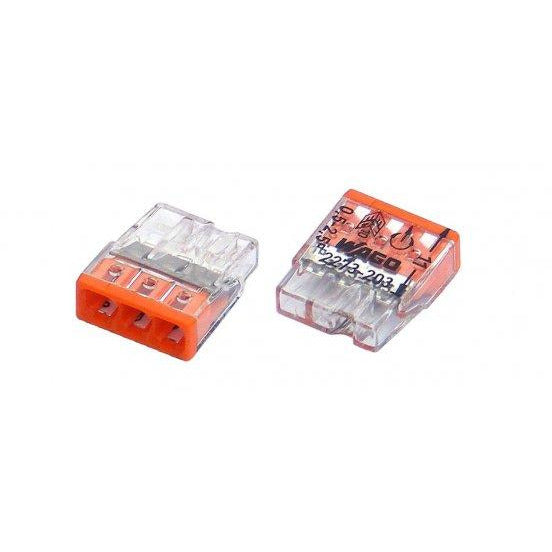

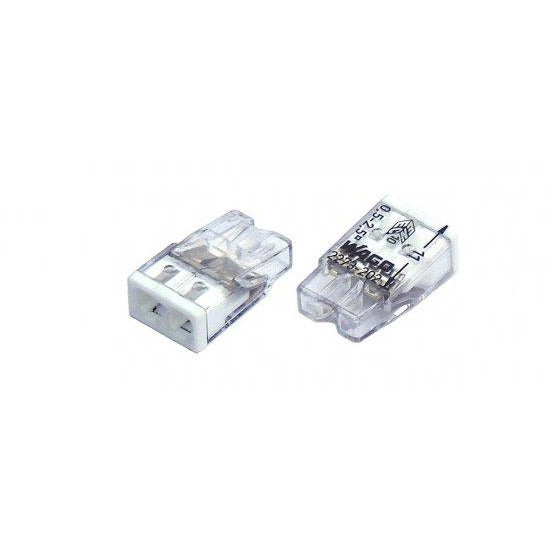

Wago PUSH WIRE® Connectors – 2273 Series

The 2273 series PUSH WIRE® connectors allows fast wiring for solid conductors safely, due to the spring clamp connection. They are ideal for junction boxes and around 50% smaller than the original 273 series. This saves a great deal of space for electrical installations.

The individually combinable connection cross sections from 0.5 to 2.5mm², nominal current up to 24A, and clear unique colour coding for quick access to provide you with the perfect installation conditions.

Key features

• Visually inspect for proper strip length and complete wire insertion through its transparent housing
• Connect solid conductors: 0. 5-2.5mm²

How it works

1. Strip the conductor to 11mm
2. Insert the conductor fully into the housing to complete the connection
3. To remove, simply twist and pull the connector and conductor at the same time

Sold in packs of 5.
